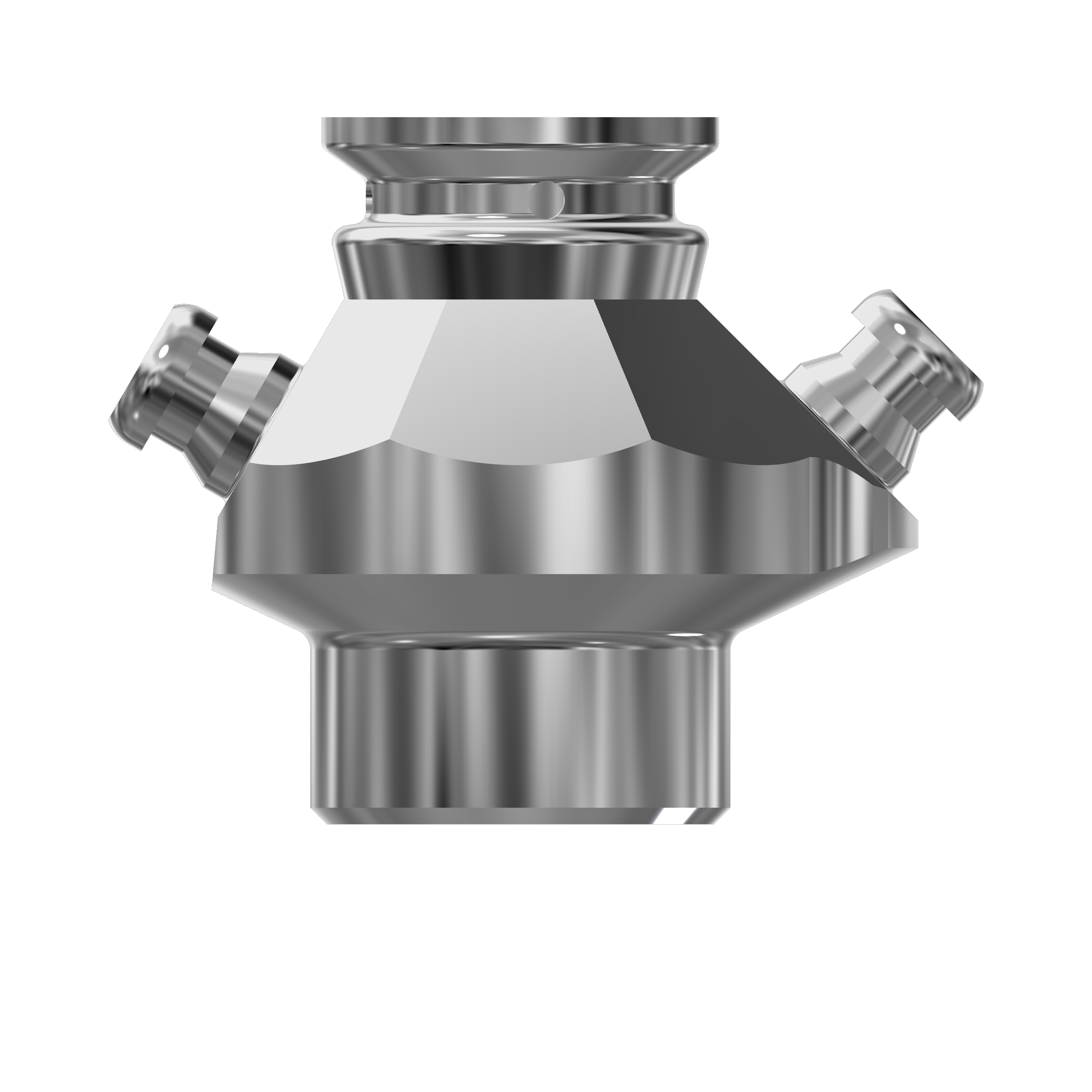

SESAME BODIES - DOUBLE PORT

Patented dual-seat sampling valve
The Keofitt Sesame Sampling Valve is KEOFITT®'s newest and patented dual-seat sampling valve. Truly unique in the market, it offers optimal CIP and SIP conditions while also incorporating steam supply control and completely eliminating the steam inlet dead-space in other designs.
The unique feature of this valve is in its membrane design which incorporates two separate seats for sampling and sterilizing/sanitizing, respectively. The second seat is located in the area sealing off the valve head. This design allows the sealing area to be sterilized along with the valve chamber prior to each sampling procedure. Furthermore, no separate inlet is required, thus eliminating any dead space while sampling.
The KEOFITT® Sesame valve is designed for sampling of low or medium viscosity products in the range of 0-1,000 cP with particles less than 3 mm in diameter.
The double-seat Sesame™ valve is used in a range of applications such as brewery, dairy, pharmaceutical and biotechnological companies, with a wide range of products such as:

Medical Solutions * Filtered and Unfiltered Beer * Creams and Lotions * Unprocessed Milk * Perfume
