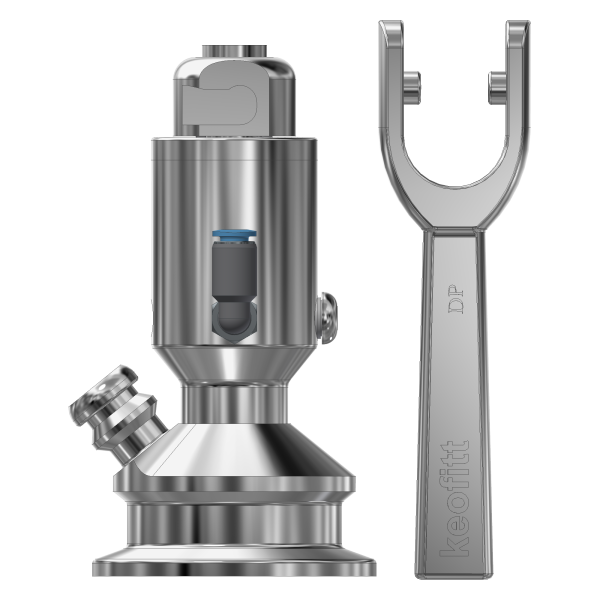

BASIX VALVE TYPE C 1" DIN/N EPDM

Item number
452244E
Details
Details
More Information
Viscosity 1 - 100 cP
Particle diameter < 1,5 mm
Membrane EPDM
In/Outlet Hose Piece
Connection Clamp 1" - NA-Connect (DIN)

The KEOFITT® BASIX™ Sampling Valve is our product category for process CIP-able sampling valves for less demanding applications that require no separate inlet for sterilizing or sanitizing media.

This valve is designed for sampling of low viscosity products in the range of 0-100 cP with particles less than 1,5 mm in diameter.

Basix™ is used for simple, hygienic sampling in all industries for products such as:

  • Water
  • Milk
  • Perfume
  • Fruit Juice

Available in manual and pneumatic versions this valve is offered complete as a valve body and valve head combination.

Choose from Silicone, EPDM or PTFE membranes.

PARTS & ACCESSORIES

  1. SINGLE STAINLESS STEEL CHAIN (BASIX)
    Item number: 450063 SINGLE STAINLESS STEEL CHAIN (BASIX)
  2. PTFE TUBING w/QUICK COUPLING 0.5 m
    Item number: 550002 PTFE TUBING w/QUICK COUPLING 0.5 m
  3. PTFE TUBING w/QUICK COUPLING/TC 0.5 m
    Item number: 550002.2 PTFE TUBING w/QUICK COUPLING/TC 0.5 m
  4. PTFE TUBING w/QUICK COUPLING 1 m
    Item number: 550003 PTFE TUBING w/QUICK COUPLING 1 m
  5. PTFE TUBING w/QUICK COUPLING/TC 1 m
    Item number: 550003.2 PTFE TUBING w/QUICK COUPLING/TC 1 m
  6. 10 PACK RUBBER CAP W9/4KAI/BASIX
    Item number: 600062 10 PACK RUBBER CAP W9/4KAI/BASIX
  7. QUICK COUPLING/QUICK COUPLING W9
    Item number: 800053 QUICK COUPLING/QUICK COUPLING W9
  8. SAMPLING COIL W9
    Item number: 800058 SAMPLING COIL W9
  9. SAMPLING COIL XL W9
    Item number: 800059 SAMPLING COIL XL W9
  10. QUICK COUPLING W9 ST. ST. PLUG
    Item number: 800061 QUICK COUPLING W9 ST. ST. PLUG
  11. QUICK COUPLING W9 WELDING END
    Item number: 800070 QUICK COUPLING W9 WELDING END
  12. QUICK COUPLING W9 3/8" HOSE BARB
    Item number:800082 QUICK COUPLING W9 3/8" HOSE BARB
  13. QUICK COUPLING W9/TC
    Item number: 800083 QUICK COUPLING W9/TC
  14. QUICK COUPLING W9 w/ M4 HOSE PIECE
    Item number: 800086 QUICK COUPLING W9 w/ M4 HOSE PIECE
  15. QUICK COUPLING w/HOSE BARB f/PTFE 10/8
    Item number: 800091 QUICK COUPLING w/HOSE BARB f/PTFE 10/8
  16. QUICK COUPLING W9 FOR SYRINGE/INJECTION
    Item number: 900045 QUICK COUPLING W9 FOR SYRINGE/INJECTION
  17. HOSE PIECE/HOSE PIECE W9
    Item number: 800052 HOSE PIECE/HOSE PIECE W9
  18. HOSE PIECE W9/MALE THREAD M12
    Item number: 900031 HOSE PIECE W9/MALE THREAD M12
  19. TUBE PTFE 10/8 mm - PACK OF 25 METER
    Item number: 900047 TUBE PTFE 10/8 mm - PACK OF 25 METER
  20. TOMMY BAR f/DISMOUNT/MOUNT VALVE HEAD
    Item number: 900018 TOMMY BAR f/DISMOUNT/MOUNT VALVE HEAD
  21. BUSHING FOR 4KAI/BASIX HEAD
    Item number: 440149 BUSHING FOR 4KAI/BASIX HEAD
  22. TOOL FOR PTFE MEMBRANE 4KAI/BASIX/M4
    Item number: 400255 TOOL FOR PTFE MEMBRANE 4KAI/BASIX/M4
  23. MEMBRANE PTFE 4KAI/BASIX/M4
    Item number: 400055 MEMBRANE PTFE 4KAI/BASIX/M4
  24. CLAMP RING 1"
    Item number:900086 CLAMP RING 1"
  25. GASKET 1" CLAMP EPDM
    Item number:900091 GASKET 1" CLAMP EPDM
SAMPLING
STERILIZATION

Valve features

  • CIP-able sampling valve with certified cleanability

  • + 20 different configurations available

  • One-piece construction

  • Widely certified

  • Ideal for replacing old sampling cocks or ball valves
