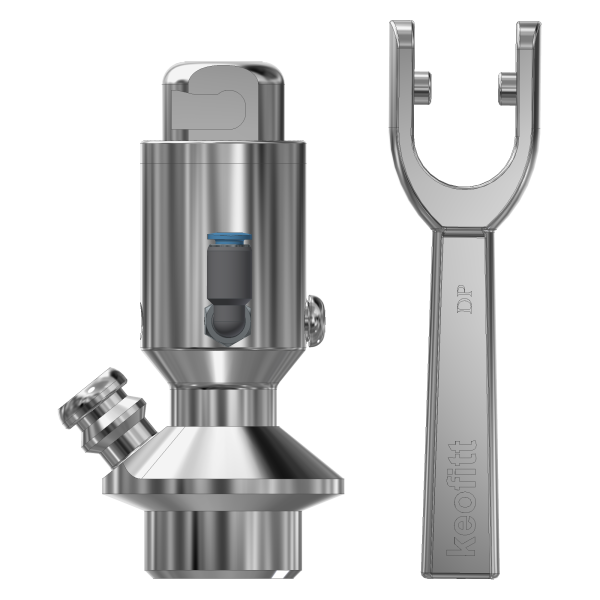

BASIX VALVE TYPE T/N PTFE

Item Number
450144PTFE

The KEOFITT® BASIX™ Sampling Valve is our product category for process CIP-able sampling valves for less demanding applications that require no separate inlet for sterilizing or sanitizing media.



Details
Details
More Information
Viscosity 1 - 100 cP
Particle diameter < 1,5 mm
Membrane PTFE
In/Outlet Hose Piece
Connection Tank Welding Ø28mm

This valve is designed for sampling of low viscosity products in the range of 0-100 cP with particles less than 1,5 mm in diameter.

Basix™ is used for simple, hygienic sampling in all industries for products such as:

  • Water
  • Milk
  • Perfume
  • Fruit Juice

Available in manual and pneumatic versions this valve is offered complete as a valve body and valve head combination.

Choose from Silicone, EPDM or PTFE membranes.

PARTS & ACCESSORIES

  1. SINGLE STAINLESS STEEL CHAIN (BASIX)
    Item Number: 450063 SINGLE STAINLESS STEEL CHAIN (BASIX)
  2. PTFE TUBING w/QUICK COUPLING 0.5 m
    Item Number: 550002 PTFE TUBING w/QUICK COUPLING 0.5 m
  3. PTFE TUBING w/QUICK COUPLING/TC 0.5 m
    Item Number: 550002.2 PTFE TUBING w/QUICK COUPLING/TC 0.5 m
  4. PTFE TUBING w/QUICK COUPLING 1 m
    Item Number: 550003 PTFE TUBING w/QUICK COUPLING 1 m
  5. PTFE TUBING w/QUICK COUPLING/TC 1 m
    Item Number: 550003.2 PTFE TUBING w/QUICK COUPLING/TC 1 m
  6. 10 PACK RUBBER CAP W9/4KAI/BASIX
    Item Number: 600062 10 PACK RUBBER CAP W9/4KAI/BASIX
  7. QUICK COUPLING/QUICK COUPLING W9
    Item Number: 800053 QUICK COUPLING/QUICK COUPLING W9
  8. SAMPLING COIL W9
    Item Number: 800058 SAMPLING COIL W9
  9. SAMPLING COIL XL W9
    Item Number: 800059 SAMPLING COIL XL W9
  10. QUICK COUPLING W9 ST. ST. PLUG
    Item Number: 800061 QUICK COUPLING W9 ST. ST. PLUG
  11. QUICK COUPLING W9 WELDING END
    Item Number: 800070 QUICK COUPLING W9 WELDING END
  12. QUICK COUPLING W9 3/8" HOSE BARB
    Item Number: 800082 QUICK COUPLING W9 3/8" HOSE BARB
  13. QUICK COUPLING W9/TC
    Item Number: 800083 QUICK COUPLING W9/TC
  14. QUICK COUPLING W9 w/ M4 HOSE PIECE
    Item Number: 800086 QUICK COUPLING W9 w/ M4 HOSE PIECE
  15. QUICK COUPLING w/HOSE BARB f/PTFE 10/8
    Item Number: 800091 QUICK COUPLING w/HOSE BARB f/PTFE 10/8
  16. QUICK COUPLING W9 FOR SYRINGE/INJECTION
    Item Number: 900045 QUICK COUPLING W9 FOR SYRINGE/INJECTION
  17. HOSE PIECE/HOSE PIECE W9
    Item Number: 800052 HOSE PIECE/HOSE PIECE W9
  18. HOSE PIECE W9/MALE THREAD M12
    Item Number: 900031 HOSE PIECE W9/MALE THREAD M12
  19. TUBE PTFE 10/8 mm - PACK OF 25 METER
    Item Number: 900047 TUBE PTFE 10/8 mm - PACK OF 25 METER
  20. TOMMY BAR f/DISMOUNT/MOUNT VALVE HEAD
    Item Number: 900018 TOMMY BAR f/DISMOUNT/MOUNT VALVE HEAD
  21. BUSHING FOR 4KAI/BASIX HEAD
    Item Number: 440149 BUSHING FOR 4KAI/BASIX HEAD
  22. TOOL FOR PTFE MEMBRANE 4KAI/BASIX/M4
    Item Number: 400255 TOOL FOR PTFE MEMBRANE 4KAI/BASIX/M4
  23. MEMBRANE PTFE 4KAI/BASIX/M4
    Item Number: 400055 MEMBRANE PTFE 4KAI/BASIX/M4
  24. 10 PACK FESTO SEALING RING
    Item Number: 550184 10 PACK FESTO SEALING RING
  25. LEVER HANDLE (NOT SESAME Q)
    Item Number: 600170 LEVER HANDLE (NOT SESAME Q)
  26. LEVER HANDLE SELF-CLOSING (NOT SESAME Q)
    Item Number: 600370 LEVER HANDLE SELF-CLOSING (NOT SESAME Q)
SAMPLING
STERILIZATION

Valve features

  • CIP-able sampling valve with certified cleanability

  • + 20 different configurations available

  • One-piece construction

  • Widely certified

  • Ideal for replacing old sampling cocks or ball valves
