MICRO PORT TYPE P NW25

Item Number
900014
The KEOFITT MICRO PORT is a re-sealing rubber septum designed to take samples using hypodermic needles or syringes with minimal risk of contamination. Designed for sampling low viscosity products in the range 0-50 cP. The KEOFITT MICRO PORT is easy to use and maintain, if needle sampling is required.
Details
Details
More Information
Viscosity 1 - 50 cP
Particle diameter < 0,5 mm
Membrane Butyl
Connection Pipe Welding NW25

The Micro Ports are used in a range of business areas, such as brewery, dairy, pharmaceutical and biotechnological industries, with a wide range of products such as:

  • Water
  • Medical solutions
  • Milk
  • Filtered Beer
  • Perfume
  • Olive Oil

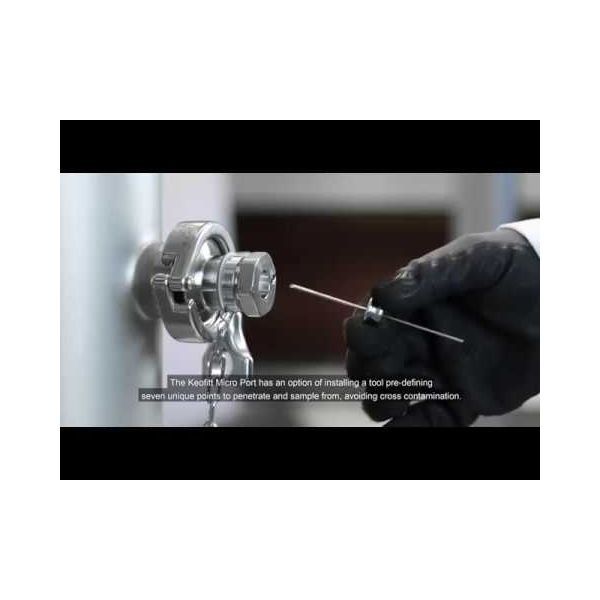

Available as a single septum or as a Multi Micro Port with seven septums.

PARTS & ACCESSORIES

  1. 10 PACK MEMBRANE BUTYL FOR MICRO PORT
    Item Number: 900049 10 PACK MEMBRANE BUTYL FOR MICRO PORT
  2. HYPODERMIC NEEDLE (SHORT)
    Item Number: 900054 HYPODERMIC NEEDLE (SHORT)
  3. 70 PACK WICK (MICRO PORT)
    Item Number: 900055 70 PACK WICK (MICRO PORT)
  4. CLAMP RING 1/2"
    Item Number: 900075 CLAMP RING 1/2"
  5. CLAMP RING 1"
    Item Number: 900086 CLAMP RING 1"
  6. GASKET MINI CLAMP 3/4" EPDM
    Item Number: 900074 GASKET MINI CLAMP 3/4" EPDM
  7. GASKET MINI CLAMP 1/2" EPDM
    Item Number: 900087 GASKET MINI CLAMP 1/2" EPDM
  8. GASKET 1" CLAMP EPDM
    Item Number: 900091 GASKET 1" CLAMP EPDM
  9. GASKET 3" CLAMP EPDM
    Item Number: 900093 GASKET 3" CLAMP EPDM
  10. INSERT FOR MICRO PORT - 7 PIERCINGS
    Item Number: 900102 INSERT FOR MICRO PORT - 7 PIERCINGS

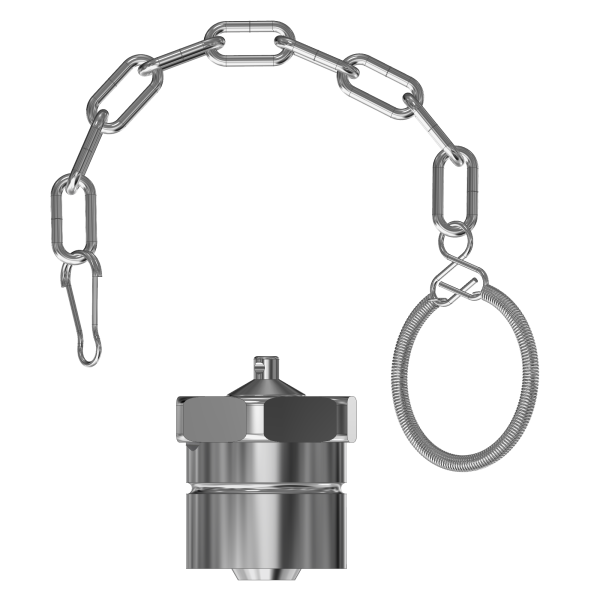

  11. PLUG MICRO PORT
    Item Number: 900441 PLUG MICRO PORT
