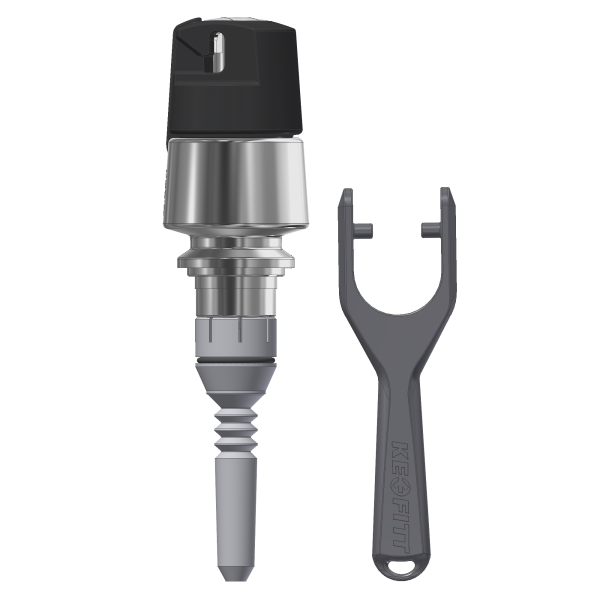

SESAME HEAD I40 mm TYPE Q

Item Number
893143PTFE
Details
Details
More Information
Membrane PTFE
Connection INGOLD _ I40mm

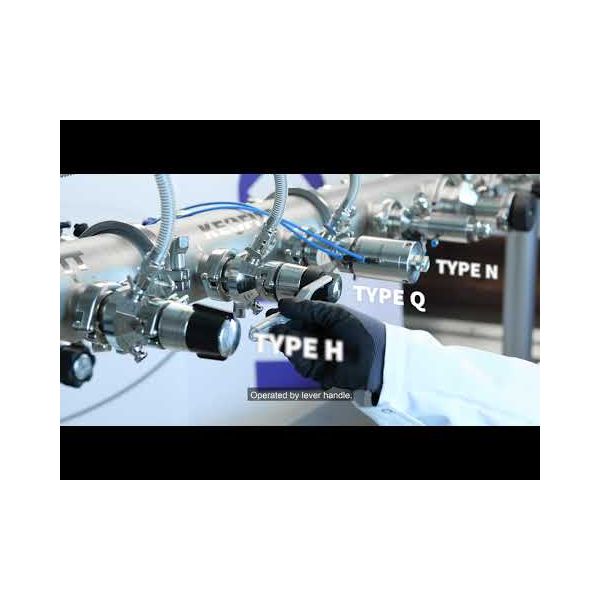

Operation Lever handle

Truly unique in the market, it offers optimal CIP and SIP conditions while also incorporating steam supply control and completely eliminating the steam inlet dead-space in other designs.
The unique feature of this valve is in its membran e design which incorporates two separate seats for sampling and sterilizing/sanitizing, respectively.
The second seat is located in the area sealing off the valve head. This design allows the sealing area to be sterilized along with the valve chamber prior to each sampling procedure. Furthermore, no separate inlet is required, thus eliminating any dead space while sampling.

The KEOFITT SESAME valve is designed for sampling of low or medium viscosity products in the range of 0-1,000 cP with particles less than 3 mm in diameter. Sampling of more viscous liquids is possible, only will it take longer (depending on process pressure).

SESAME INGOLD VALVE BODIES

  1. Item Number: 893105 SESAME BODY TYPE I40 mm
  2. Item Number: 893205 SESAME BODY TYPE I52 mm
