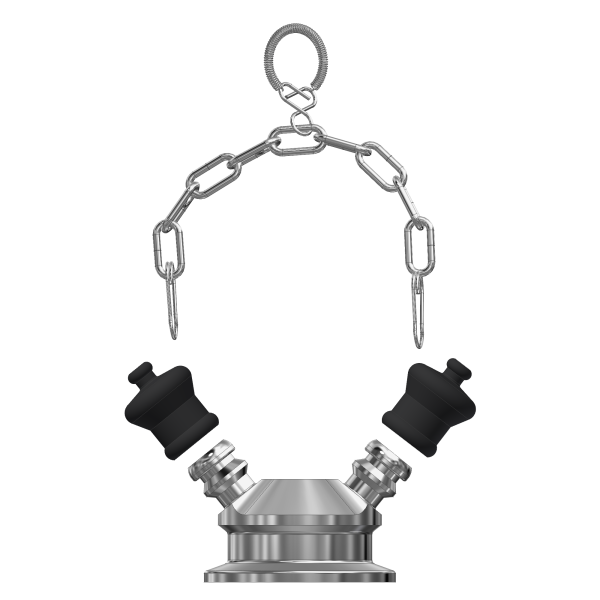

VALVE BODY 4KAI TYPE C 1"

Item number
440022
Details
Details
More Information
Viscosity 1 - 100 cP
Particle diameter < 1,5 mm
In/Outlet Hose Piece
Connection Clamp 1"

The KEOFITT CLASSIC 4KAI Sampling Valve is the smallest KEOFITT CLASSIC valve available. It is designed for the sampling of low viscosity products in the range of 0-100 cP with particles less than 1.5 mm in diameter. Sampling of more viscous liquids is possible, only will it take longer (depending on process pressure).

This valve has been adjusted to be used in a range of industries such as brewery, beverage and dairy,  for products such as:

  • Water
  • Milk
  • Filtered Beer
  • Soft drinks

Besides the selection of the Valve Body and the Valve Head there are three different membrane materials to choose from: Silicone, EPDM and PTFE. Accessories include caps, adapters, PTFE tubing and more.

4KAI VALVE HEADS

  1. VALVE HEAD 4KAI TYPE H
    Item number: 440041 VALVE HEAD 4KAI TYPE H
  2. VALVE HEAD 4KAI TYPE Q
    Item number: 440043 VALVE HEAD 4KAI TYPE Q
  3. VALVE HEAD 4KAI TYPE N
    Item number: 440044 VALVE HEAD 4KAI TYPE N
  4. VALVE HEAD 4KAI TYPE H EPDM
    Item number: 440041E VALVE HEAD 4KAI TYPE H EPDM
  5. VALVE HEAD 4KAI TYPE Q
    Item number: 440043E VALVE HEAD 4KAI TYPE Q
  6. VALVE HEAD 4KAI TYPE N EPDM
    Item number: 440044E VALVE HEAD 4KAI TYPE N EPDM
  7. VALVE HEAD 4KAI TYPE H PTFE
    Item number: 445541 VALVE HEAD 4KAI TYPE H PTFE
  8. VALVE HEAD 4KAI TYPE Q PTFE
    Item number: 445543 VALVE HEAD 4KAI TYPE Q PTFE
  9. VALVE HEAD 4KAI TYPE N PTFE
    Item number: 445544 VALVE HEAD 4KAI TYPE N PTFE

PARTS & ACCESSORIES

  1. PTFE TUBING w/QUICK COUPLING 1 m
    Item number: 550003 PTFE TUBING w/QUICK COUPLING 1 m
  2. PTFE TUBING w/QUICK COUPLING 0.5 m
    Item number: 550002 PTFE TUBING w/QUICK COUPLING 0.5 m
  3. KÄRCHER/KEOFITT ADAPTOR
    Item number: 550057 KÄRCHER/KEOFITT ADAPTOR
  4. 10 PACK RUBBER CAP W9/4KAI/BASIX
    Item number: 600062 10 PACK RUBBER CAP W9/4KAI/BASIX
  5. QUICK COUPLING/QUICK COUPLING W9
    Item number: 800053 QUICK COUPLING/QUICK COUPLING W9
  6. QUICK COUPLING W9 3/8" HOSE BARB
    Item number:800082 QUICK COUPLING W9 3/8" HOSE BARB
  7. QUICK COUPLING W9/TC
    Item number: 800083 QUICK COUPLING W9/TC
  8. QUICK COUPLING W9 w/ M4 HOSE PIECE
    Item number: 800086 QUICK COUPLING W9 w/ M4 HOSE PIECE
  9. QUICK COUPLING W9 ST. ST. PLUG
    Item number: 800061 QUICK COUPLING W9 ST. ST. PLUG
  10. QUICK COUPLING W9 WELDING END
    Item number: 800070 QUICK COUPLING W9 WELDING END
  11. QUICK COUPLING W9 FOR SYRINGE/INJECTION
    Item number: 900045 QUICK COUPLING W9 FOR SYRINGE/INJECTION
  12. HOSE PIECE W9/MALE THREAD M12
    Item number: 900031 HOSE PIECE W9/MALE THREAD M12
  13. SAMPLING COIL W9
    Item number: 800058 SAMPLING COIL W9
  14. SAMPLING COIL XL W9
    Item number: 800059 SAMPLING COIL XL W9
  15. QUICK COUPLING w/HOSE BARB f/PTFE 10/8
    Item number: 800091 QUICK COUPLING w/HOSE BARB f/PTFE 10/8
  16. DOUBLE ST.ST. CHAIN 4KAI
    Item number: 440064 DOUBLE ST.ST. CHAIN 4KAI
  17. CLAMP RING 1"
    Item number:900086 CLAMP RING 1"
  18. CLAMP RING 1/2"
    Item number:900075 CLAMP RING 1/2"
  19. TUBE PTFE 10/8 mm - PACK OF 25 METER
    Item number: 900047 TUBE PTFE 10/8 mm - PACK OF 25 METER
  20. GASKET MINI CLAMP 1/2" EPDM
    Item number:900087 GASKET MINI CLAMP 1/2" EPDM
  21. GASKET 1" CLAMP EPDM
    Item number:900091 GASKET 1" CLAMP EPDM
  22. PTFE TUBING w/QUICK COUPLING/TC 0.5 m
    Item number: 550002.2 PTFE TUBING w/QUICK COUPLING/TC 0.5 m
  23. PTFE TUBING w/QUICK COUPLING/TC 1 m
    Item number: 550003.2 PTFE TUBING w/QUICK COUPLING/TC 1 m
  24. BUSHING FOR 4KAI/BASIX HEAD
    Item number: 440149 BUSHING FOR 4KAI/BASIX HEAD
  25. HOSE PIECE/HOSE PIECE W9
    Item number: 800052 HOSE PIECE/HOSE PIECE W9
