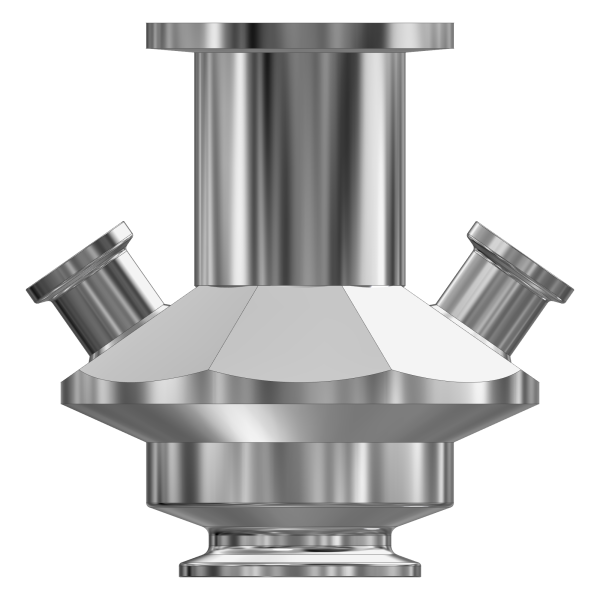

VALVE BODY W15 C1" 3/4" CLAMP

Item number
860004
Details
Details
More Information
Viscosity 1 - 50.000 cP
Particle diameter < 8 mm
In/Outlet Mini TRI-Clamp 3/4"
Connection Clamp 1"

The KEOFITT® CLASSIC W15 Sampling Valve is designed for high viscosious products in the range of 0-50,000 cP or products containing particles with up to 8 mm in diameter. Sampling of more viscous liquids is possible, only will it take longer (depending on process pressure).
This valve is used in a range of industries such as dairy, food and personal care  for products such as:

  • Yoghurt
  • Honey
  • Syrup
  • Ketchup
  • Marmalade
  • Fruit pulp products
  • Creams and lotions

Find the ideal valve configuration for your application by choosing from numerous combinations of valve bodies  and valve heads with PTFE membrane. You can also find a wide range of accessories, like caps, adapters, PTFE tubing and more.

Make request for this product
Send request
Request this product
We are happy you are interested in our products. Please fill out this form and submit - we will get back to you as soon as possible.
Send request

W15 VALVE HEADS

  1. VALVE HEAD W15 TYPE H PTFE
    Item number: 865541 VALVE HEAD W15 TYPE H PTFE
  2. VALVE HEAD W15 TYPE B PTFE
    Item number: 865547 VALVE HEAD W15 TYPE B PTFE
  3. VALVE HEAD W15 TYPE N PTFE
    Item number: 865544 VALVE HEAD W15 TYPE N PTFE

PARTS & ACCESSORIES

  1. CLAMP FOR PTFE 10/8 CONNECTION
    Item number: 300021 CLAMP FOR PTFE 10/8 CONNECTION
  2. PTFE TUBING W/TC 0,5 m
    Item number: 550004 PTFE TUBING W/TC 0,5 m
  3. PTFE TUBING W/TC 1 m
    Item number: 550005 PTFE TUBING W/TC 1 m
  4. ADAPTOR ½" CLAMP / 1" CLAMP
    Item number: 800014 ADAPTOR ½" CLAMP / 1" CLAMP
  5. ADAPTOR W9/W15 HOSE PIECE/TRI-CLAMP
    Item number: 900096 ADAPTOR W9/W15 HOSE PIECE/TRI-CLAMP
  6. BLIND CAP FOR ½" CLAMP
    Item number:900021 BLIND CAP FOR ½" CLAMP
  7. CLAMP RING 1/2"
    Item number:900075 CLAMP RING 1/2"
  8. 2" CLAMP RING
    Item number:900186 2" CLAMP RING
