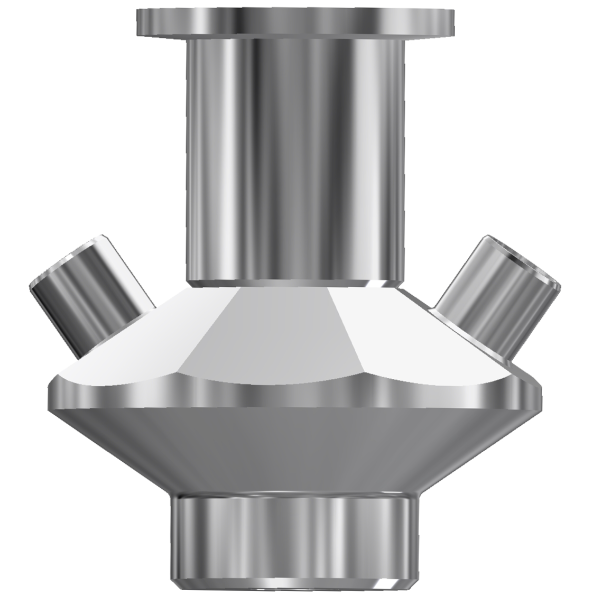

VALVE BODY W15 TYPE T WELDING ENDS

Item number
860007
Details
Details
More Information
Viscosity 1 - 50.000 cP
Particle diameter < 8 mm
In/Outlet Welding Ends
Connection Tank Welding Ø50mm

The KEOFITT® CLASSIC W15 Sampling Valve is designed for high viscosious products in the range of 0-50,000 cP or products containing particles with up to 8 mm in diameter. Sampling of more viscous liquids is possible, only will it take longer (depending on process pressure).
This valve is used in a range of industries such as dairy, food and personal care  for products such as:

  • Yoghurt
  • Honey
  • Syrup
  • Ketchup
  • Marmalade
  • Fruit pulp products
  • Creams and lotions

Find the ideal valve configuration for your application by choosing from numerous combinations of valve bodies  and valve heads with PTFE membrane. You can also find a wide range of accessories, like caps, adapters, PTFE tubing and more.

W15 VALVE HEADS

  1. VALVE HEAD W15 TYPE H PTFE
    Item number: 865541 VALVE HEAD W15 TYPE H PTFE
  2. VALVE HEAD W15 TYPE B PTFE
    Item number: 865547 VALVE HEAD W15 TYPE B PTFE
  3. VALVE HEAD W15 TYPE N PTFE
    Item number: 865544 VALVE HEAD W15 TYPE N PTFE

PARTS & ACCESSORIES

  1. BLIND CAP FOR ½" CLAMP
    Item number:900021 BLIND CAP FOR ½" CLAMP
  2. GASKET MINI CLAMP 3/4" EPDM
    Item number:900074 GASKET MINI CLAMP 3/4" EPDM
  3. GASKET 2" CLAMP EPDM
    Item number:900092 GASKET 2" CLAMP EPDM
  4. GASKET 3" CLAMP EPDM
    Item number:900093 GASKET 3" CLAMP EPDM
  5. CLAMP RING 1/2"
    Item number:900075 CLAMP RING 1/2"
  6. 2" CLAMP RING
    Item number:900186 2" CLAMP RING
