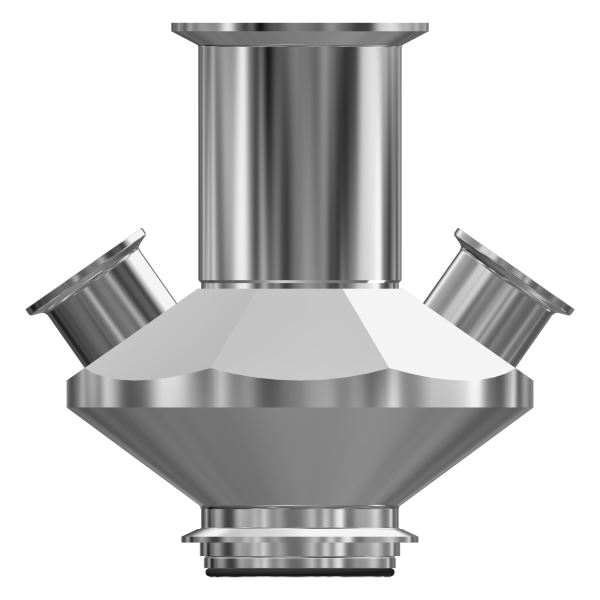

VALVE BODY W25 VARIVENT Ø68

Item Number
870009
The KEOFITT CLASSIC W25 Sampling Valve is the largest KEOFITT sampling valve. Designed for sampling of very high viscosity products in the range of 0-250,000 cP and particles less than 17 mm in diameter. Sampling of more viscous liquids is possible, only will it take longer (depending on process pressure).
Details
Details
More Information
Viscosity 1 - 250.000 cP
Particle diameter < 17 mm
In/Outlet Clamp 1"
Connection Varivent Ø68mm

W25 VALVE HEADS

  1. VALVE HEAD W25 TYPE N PTFE
    Item Number: 875544 VALVE HEAD W25 TYPE N PTFE
  2. VALVE HEAD W25 TYPE B PTFE
    Item Number: 875547 VALVE HEAD W25 TYPE B PTFE

PARTS & ACCESSORIES

  1. ADAPTOR ½" CLAMP/1" CLAMP
    Item Number: 800014 ADAPTOR ½" CLAMP/1" CLAMP
  2. CLAMP RING 1"
    Item Number: 900086 CLAMP RING 1"
  3. CLAMP RING FOR W25 VALVE
    Item Number: 900187 CLAMP RING FOR W25 VALVE
  4. GASKET 1" CLAMP EPDM
    Item Number: 900091 GASKET 1" CLAMP EPDM
  5. GASKET 3" CLAMP EPDM
    Item Number: 900093 GASKET 3" CLAMP EPDM
  6. 10 PACK O-RING 'VARIVENT' EPDM 60 x 3
    Item Number: 400208 10 PACK O-RING 'VARIVENT' EPDM 60 x 3

The KEOFITT® CLASSIC W25 Sampling Valve is the largest KEOFITT® sampling valve. It is designed for very high viscous products in the range of approx. 0-250,000 cP or products containing large particles with a size of up to 17 mm in diameter.
This valve is used in a range of industries such as food, dairy, and personal care for products such as:

  • Peanut Butter
  • Cellulose
  • Fruit Mixed Products
  • Creams

Find the ideal valve configuration for your application by choosing from numerous combinations of valve bodies and valve heads with PTFE membrane.
