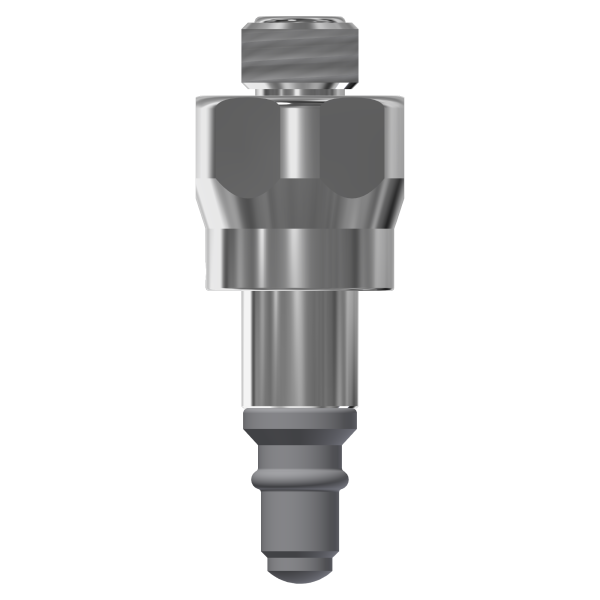

VALVE HEAD W9 TYPE K
Item Number
600042

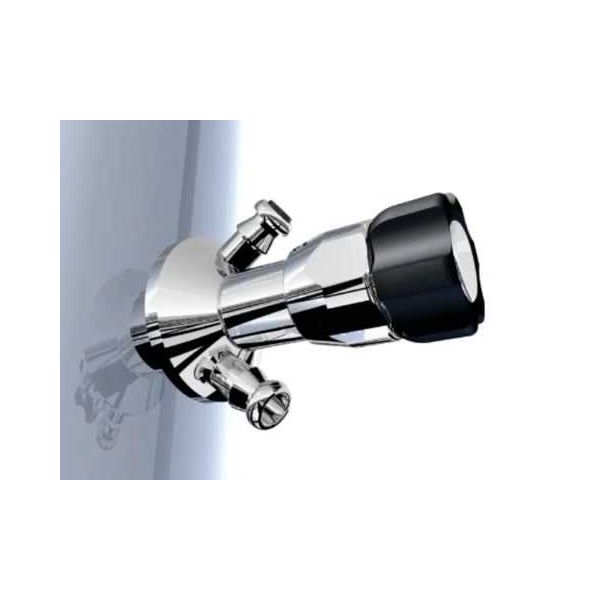

The KEOFITT CLASSIC W9 Sampling Valve is considered the father of all steam-sterilizable sampling valves. Refined through 40 years of experience it remains KEOFITT’s most popular sampling valve. Designed for the sampling of medium viscosity products in the range of 0-1000 cP with particles less than 3 mm in diameter, it covers most needs for liquid sampling. Sampling of more viscous liquids is possible, only will it take longer (depending on process pressure).
| Membrane | Silicone |
|---|---|
| Operation | Key-ring turn knob |
Coaxial steam sterilizable design with separate inlet for SIP and CIP: The reference for hygienic and microbiological sampling for three decades, this is the original, in-situ sterilizable sampling valve that continues to revolutionize the field of sterile sampling.
VALVE BODIES
-
Item Number: 850001 VALVE BODY W9 TYPE T -
Item Number: 850003 VALVE BODY W9 2" CLAMP -
Item Number: 850004 VALVE BODY W9 3" CLAMP -
Item Number: 850005 VALVE BODY W9 TYPE C2" DIN MINITRI-CLAMP -
Item Number: 850006 VALVE BODY W9 TYPE T 1/2" CLAMP -
Item Number: 850007 VALVE BODY W9 TYPE T WELDING ENDS -
Item Number: 850008 VALVE BODY W9 VARIVENT Ø50 -
Item Number: 850009 VALVE BODY W9 VARIVENT Ø68 -
Item Number: 850010 VALVE BODY W9 TYPE P 1/2" CLAMP -
Item Number: 850011 VALVE BODY W9 TYPE P -
Item Number: 850013 VALVE BODY W9 VARIVENT Ø68 1/2" CLAMP -
Item Number: 850014 VALVE BODY W9 TYPE P NW25 -
Item Number: 850015 VALVE BODY W9 T THREAD M16x1.5 -
Item Number: 850016 VALVE BODY W9 P THREAD M16x1.5 -
Item Number: 850018 VALVE BODY W9 P NW25 THREAD M16x1.5 -
Item Number: 850019 VALVE BODY W9 TYPE P WELDING ENDS -
Item Number: 850020 VALVE BODY W9 VARIVENT Ø50 MINITRI-CLAMP -
Item Number: 850021 VALVE BODY W9 1" CLAMP -
Item Number: 850022 VALVE BODY W9 C 1" DIN MINI TRI-CLAMP -
Item Number: 850024 VALVE BODY W9 C1" ASME/DIN THREADM16x1.5 -
Item Number: 850025 VALVE BODY W9 C1" ASME/DIN MINITRI-CLAMP -
Item Number: 850026 VALVE BODY W9 C2" ASME/DIN MINITRI-CLAMP -
Item Number: 850027 W9 IN-LINE VERTICAL ON REQUEST ONLY! -
Item Number: 850028 W9 IN-LINE HORIZONTAL ON REQUEST ONLY! -
Item Number: 850031 VALVE BODY W9 S -
Item Number: 850036 VALVE BODY W9 MINI TRI-CLAMP -
Item Number: 850037 VALVE BODY W9 S THREAD M16x1.5 -
Item Number: 850039 VALVE BODY W9 C ½" MINI TRI-CLAMP -
Item Number: 850040 VALVE BODY W9 UNION DN10 DIN 11851 -
Item Number: 850001-1 VALVE BODY W9 TYPE T OUTLET ONLY -
Item Number: 850008-1 VALVE BODY W9 VARIVENT Ø50 OUTLET ONLY -
Item Number: 850009-1 VALVE BODY W9 VARIVENT Ø68 OUTLET ONLY -
Item Number: 850011-1 VALVE BODY W9 TYPE P OUTLET ONLY -
Item Number: 850021-1 VALVE BODY W9 1" CLAMP OUTLET ONLY -
Item Number: 850036-1 VALVE BODY W9 MINI TRI-CLAMP OUTLET ONLY -
Item Number: 850039-1 VALVE BODY W9 C½" MINI TRI-CLAMP OUTLET
PARTS & ACCESSORIES
-
Item Number: 900018 TOMMY BAR f/DISMOUNT/MOUNT VALVE HEAD -
Item Number: 600051 10 PACK MEMBRANE SILICONE W9/SIMPLEX -
Item Number: 600149 BUSHING FOR W9 VALVE HEAD -
Item Number: 850840 PINOL SCREW F/W9 HEAD -
Item Number: 600076 KEY RING W9 f/VALVE HEAD TYPE K
