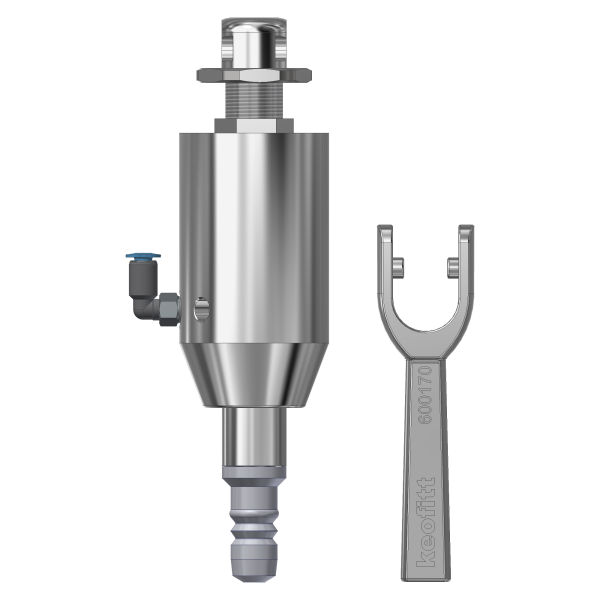

VALVE HEAD W9 TYPE N/Adjustable PTFE
Item Number
855545

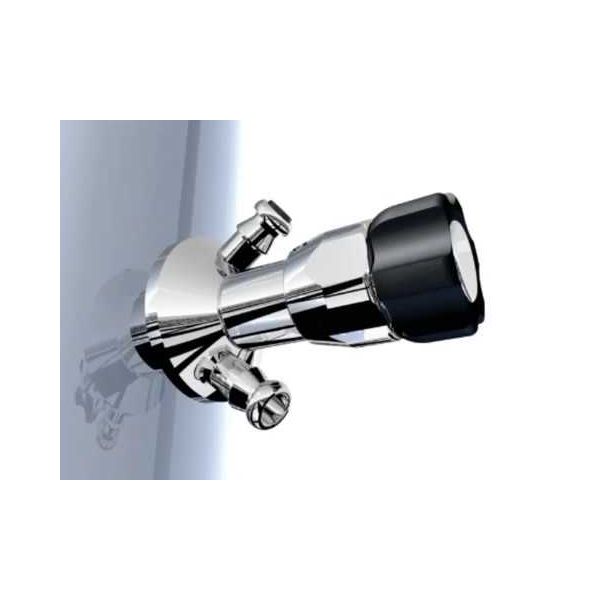

The KEOFITT CLASSIC W9 Sampling Valve is considered the father of all steam-sterilizable sampling valves. Refined through 40 years of experience it remains KEOFITT’s most popular sampling valve. Designed for the sampling of medium viscosity products in the range of 0-1000 cP with particles less than 3 mm in diameter, it covers most needs for liquid sampling. Sampling of more viscous liquids is possible, only will it take longer (depending on process pressure).
Membrane | PTFE |
---|---|
Operation | Pneumatic actuator adjustable |
Coaxial steam sterilizable design with separate inlet for SIP and CIP: The reference for hygienic and microbiological sampling for three decades, this is the original, in-situ sterilizable sampling valve that continues to revolutionize the field of sterile sampling.
VALVE BODIES
-
Item Number: 850001 VALVE BODY W9 TYPE T
-
Item Number: 850003 VALVE BODY W9 2" CLAMP
-
Item Number: 850004 VALVE BODY W9 3" CLAMP
-
Item Number: 850005 VALVE BODY W9 TYPE C2" DIN MINITRI-CLAMP
-
Item Number: 850006 VALVE BODY W9 TYPE T 1/2" CLAMP
-
Item Number: 850007 VALVE BODY W9 TYPE T WELDING ENDS
-
Item Number: 850008 VALVE BODY W9 VARIVENT Ø50
-
Item Number: 850009 VALVE BODY W9 VARIVENT Ø68
-
Item Number: 850010 VALVE BODY W9 TYPE P 1/2" CLAMP
-
Item Number: 850011 VALVE BODY W9 TYPE P
-
Item Number: 850013 VALVE BODY W9 VARIVENT Ø68 1/2" CLAMP
-
Item Number: 850014 VALVE BODY W9 TYPE P NW25
-
Item Number: 850015 VALVE BODY W9 T THREAD M16x1.5
-
Item Number: 850016 VALVE BODY W9 P THREAD M16x1.5
-
Item Number: 850018 VALVE BODY W9 P NW25 THREAD M16x1.5
-
Item Number: 850019 VALVE BODY W9 TYPE P WELDING ENDS
-
Item Number: 850020 VALVE BODY W9 VARIVENT Ø50 MINITRI-CLAMP
-
Item Number: 850021 VALVE BODY W9 1" CLAMP
-
Item Number: 850022 VALVE BODY W9 C 1" DIN MINI TRI-CLAMP
-
Item Number: 850024 VALVE BODY W9 C1" ASME/DIN THREADM16x1.5
-
Item Number: 850025 VALVE BODY W9 C1" ASME/DIN MINITRI-CLAMP
-
Item Number: 850026 VALVE BODY W9 C2" ASME/DIN MINITRI-CLAMP
-
Item Number: 850027 W9 IN-LINE VERTICAL ON REQUEST ONLY!
-
Item Number: 850028 W9 IN-LINE HORIZONTAL ON REQUEST ONLY!
-
Item Number: 850031 VALVE BODY W9 S
-
Item Number: 850036 VALVE BODY W9 MINI TRI-CLAMP
-
Item Number: 850037 VALVE BODY W9 S THREAD M16x1.5
-
Item Number: 850039 VALVE BODY W9 C ½" MINI TRI-CLAMP
-
Item Number: 850040 VALVE BODY W9 UNION DN10 DIN 11851
-
Item Number: 850001-1 VALVE BODY W9 TYPE T OUTLET ONLY
-
Item Number: 850008-1 VALVE BODY W9 VARIVENT Ø50 OUTLET ONLY
-
Item Number: 850009-1 VALVE BODY W9 VARIVENT Ø68 OUTLET ONLY
-
Item Number: 850011-1 VALVE BODY W9 TYPE P OUTLET ONLY
-
Item Number: 850021-1 VALVE BODY W9 1" CLAMP OUTLET ONLY
-
Item Number: 850036-1 VALVE BODY W9 MINI TRI-CLAMP OUTLET ONLY
-
Item Number: 850039-1 VALVE BODY W9 C½" MINI TRI-CLAMP OUTLET
PARTS & ACCESSORIES
-
Item Number: 850055 MEMBRANE PTFE W9
-
Item Number: 900018 TOMMY BAR f/DISMOUNT/MOUNT VALVE HEAD
-
Item Number: 600255 TOOL FOR PTFE MEMBRANE - W9
-
Item Number: 600149 BUSHING FOR W9 VALVE HEAD
-
Item Number: 850840 PINOL SCREW F/W9 HEAD
-
Item Number: 600170 LEVER HANDLE (NOT SESAME Q)
-
Item Number: 600370 LEVER HANDLE SELF-CLOSING (NOT SESAME Q)
-
Item Number: 400166 PROXIMITY SENSOR FOR M4/W9
-
Item Number: 600266 PROX. SENSOR W9 - CLOSED POSITION
-
Item Number: 600267 PROXIMITY SENSOR MOUNTING KIT W9
