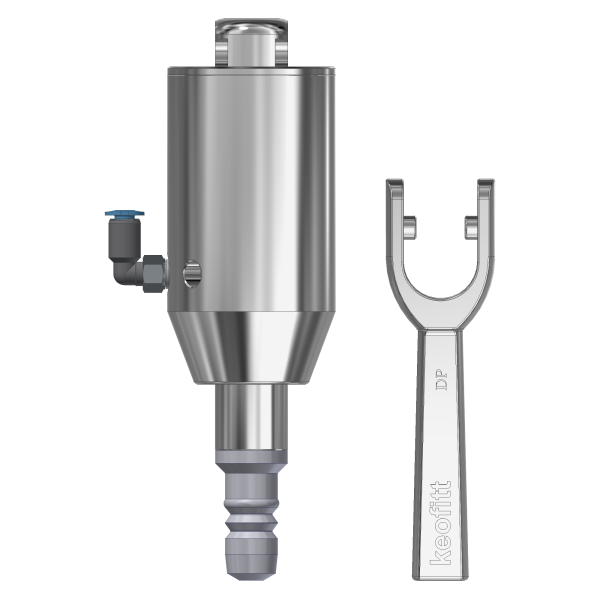

VALVE HEAD W9 TYPE N PTFE
Item number
855544
| Membrane | PTFE |
|---|---|
| Operation | Pneumatic actuator |

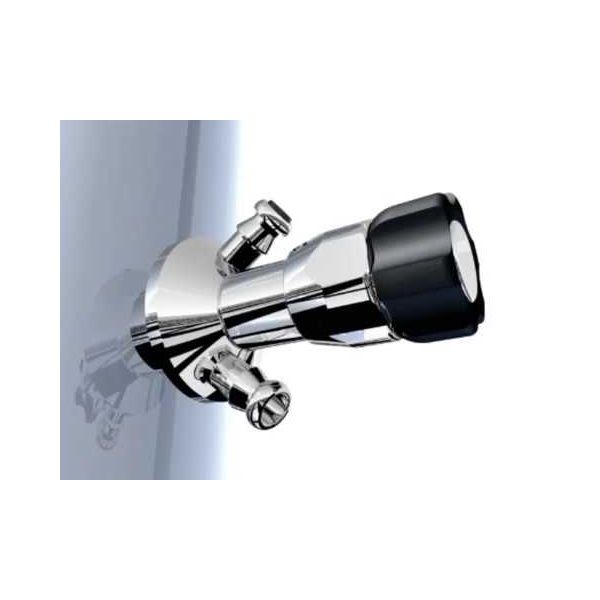

The KEOFITT CLASSIC W9 Sampling Valve is considered the father of all steam-sterilizable sampling valves. Refined through 40 years of experience it remains KEOFITT’s most popular sampling valve. Designed for the sampling of medium viscosity products in the range of 0-1000 cP with particles less than 3 mm in diameter, it covers most needs for liquid sampling. Sampling of more viscous liquids is possible, only will it take longer (depending on process pressure).
Coaxial steam sterilizable design with separate inlet for SIP and CIP: The reference for hygienic and microbiological sampling for three decades, this is the original, in-situ sterilizable sampling valve that continues to revolutionize the field of sterile sampling.
VALVE BODIES
-
Item number: 850001 VALVE BODY W9 TYPE T -
Item number:850003 VALVE BODY W9 2" CLAMP -
Item number:850004 VALVE BODY W9 3" CLAMP -
Item number:850005 VALVE BODY W9 TYPE C2" DIN MINITRI-CLAMP -
Item number:850006 VALVE BODY W9 TYPE T 1/2" CLAMP -
Item number: 850007 VALVE BODY W9 TYPE T WELDING ENDS -
Item number: 850008 VALVE BODY W9 VARIVENT Ø50 -
Item number: 850009 VALVE BODY W9 VARIVENT Ø68 -
Item number:850010 VALVE BODY W9 TYPE P 1/2" CLAMP -
Item number: 850011 VALVE BODY W9 TYPE P -
Item number:850013 VALVE BODY W9 VARIVENT Ø68 1/2" CLAMP -
Item number: 850014 VALVE BODY W9 TYPE P NW25 -
Item number: 850015 VALVE BODY W9 T THREAD M16x1.5 -
Item number: 850016 VALVE BODY W9 P THREAD M16x1.5 -
Item number: 850018 VALVE BODY W9 P NW25 THREAD M16x1.5 -
Item number: 850019 VALVE BODY W9 TYPE P WELDING ENDS -
Item number: 850020 VALVE BODY W9 VARIVENT Ø50 MINITRI-CLAMP -
Item number:850021 VALVE BODY W9 1" CLAMP -
Item number:850022 VALVE BODY W9 C 1" DIN MINI TRI-CLAMP -
Item number:850024 VALVE BODY W9 C1" ASME/DIN THREADM16x1.5 -
Item number:850025 VALVE BODY W9 C1" ASME/DIN MINITRI-CLAMP -
Item number:850026 VALVE BODY W9 C2" ASME/DIN MINITRI-CLAMP -
Item number: 850027 W9 IN-LINE VERTICAL ON REQUEST ONLY! -
Item number: 850028 W9 IN-LINE HORIZONTAL ON REQUEST ONLY! -
Item number: 850031 VALVE BODY W9 S -
Item number: 850036 VALVE BODY W9 MINI TRI-CLAMP -
Item number: 850037 VALVE BODY W9 S THREAD M16x1.5 -
Item number:850039 VALVE BODY W9 C ½" MINI TRI-CLAMP -
Item number: 850040 VALVE BODY W9 UNION DN10 DIN 11851 -
Item number: 850001-1 VALVE BODY W9 TYPE T OUTLET ONLY -
Item number: 850008-1 VALVE BODY W9 VARIVENT Ø50 OUTLET ONLY -
Item number: 850009-1 VALVE BODY W9 VARIVENT Ø68 OUTLET ONLY -
Item number: 850011-1 VALVE BODY W9 TYPE P OUTLET ONLY -
Item number:850021-1 VALVE BODY W9 1" CLAMP OUTLET ONLY -
Item number: 850036-1 VALVE BODY W9 MINI TRI-CLAMP OUTLET ONLY -
Item number:850039-1 VALVE BODY W9 C½" MINI TRI-CLAMP OUTLET
PARTS & ACCESSORIES
-
Item number: 850055 MEMBRANE PTFE W9 -
Item number: 900018 TOMMY BAR f/DISMOUNT/MOUNT VALVE HEAD -
Item number: 600255 TOOL FOR PTFE MEMBRANE - W9 -
Item number: 600149 BUSHING FOR W9 VALVE HEAD -
Item number: 850840 PINOL SCREW F/W9 HEAD -
Item number: 600170 LEVER HANDLE (NOT SESAME Q) -
Item number: 600370 LEVER HANDLE SELF-CLOSING (NOT SESAME Q) -
Item number: 400166 PROXIMITY SENSOR FOR M4/W9 -
Item number: 600266 PROX. SENSOR W9 - CLOSED POSITION -
Item number: 600267 PROXIMITY SENSOR MOUNTING KIT W9
