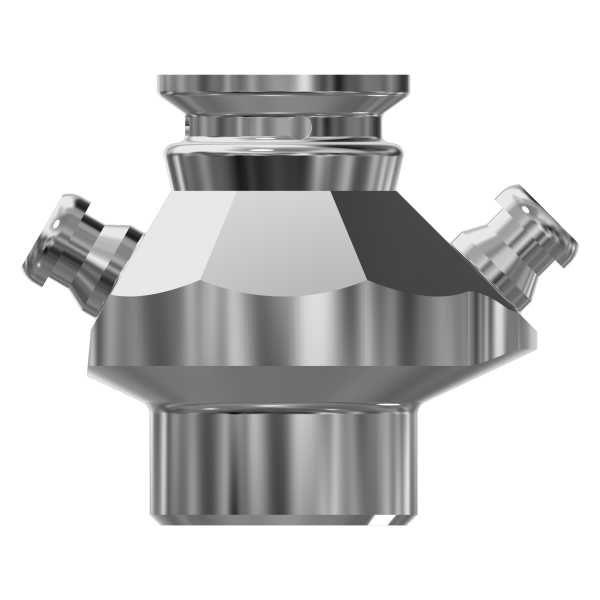

SESAME BODY TYPE T

Item Number
890001
The KEOFITT SESAME Sampling Valve is KEOFITT’s dual-seated sampling valve.
Details
Details
More Information
Viscosity 1 - 1000 cP
Particle diameter < 3 mm
In/Outlet Hose Piece
Connection Tank Welding Ø38mm

Truly unique in the market, it offers optimal CIP and SIP conditions while also incorporating steam supply control and completely eliminating the steam inlet dead-space in other designs.
The unique feature of this valve is in its membrane design which incorporates two separate seats for sampling and sterilizing/sanitizing, respectively.
The second seat is located in the area sealing off the valve head. This design allows the sealing area to be sterilized along with the valve chamber prior to each sampling procedure. Furthermore, no separate inlet is required, thus eliminating any dead space while sampling.

The KEOFITT SESAME valve is designed for sampling of low or medium viscosity products in the range of 0-1,000 cP with particles less than 3 mm in diameter. Sampling of more viscous liquids is possible, only will it take longer (depending on process pressure).

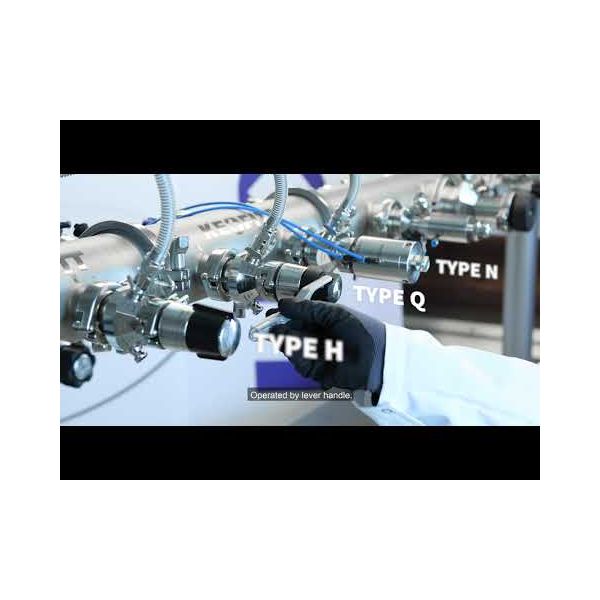

SESAME VALVE HEADS

  1. Item Number: 890041 SESAME HEAD TYPE H
  2. Item Number: 890043 SESAME HEAD TYPE Q
  3. Item Number: 890044 SESAME HEAD TYPE N
  4. Item Number: 890041E SESAME HEAD TYPE H EPDM
  5. Item Number: 890043E SESAME HEAD TYPE Q EPDM
  6. Item Number: 890044E SESAME HEAD TYPE N EPDM
  7. Item Number: 895541 SESAME HEAD TYPE H
  8. Item Number: 895543 SESAME HEAD TYPE Q
  9. Item Number: 895544 SESAME HEAD TYPE N
