SESAME HEAD TYPE Q EPDM
Membrane | EPDM |
---|---|

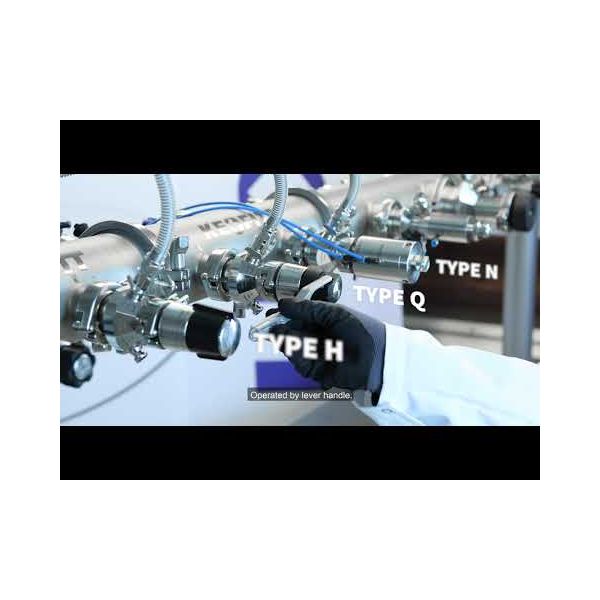

Operation | Lever handle |
Truly unique in the market, it offers optimal CIP and SIP conditions while also incorporating steam supply control and completely eliminating the steam inlet dead-space in other designs.
The unique feature of this valve is in its membran e design which incorporates two separate seats for sampling and sterilizing/sanitizing, respectively.
The second seat is located in the area sealing off the valve head. This design allows the sealing area to be sterilized along with the valve chamber prior to each sampling procedure. Furthermore, no separate inlet is required, thus eliminating any dead space while sampling.
The KEOFITT SESAME valve is designed for sampling of low or medium viscosity products in the range of 0-1,000 cP with particles less than 3 mm in diameter. Sampling of more viscous liquids is possible, only will it take longer (depending on process pressure).
SESAME VALVE BODIES
-
Item Number: 890001 SESAME BODY TYPE T
-
Item Number: 890011 SESAME BODY TYPE P 1"
-
Item Number: 890014 SESAME BODY TYPE P NW25
-
Item Number: 890008 SESAME BODY VARIVENT Ø50
-
Item Number: 890009 SESAME BODY VARIVENT Ø68
-
Item Number: 890036 SESAME BODY TYPE 3/4" MINI TRI CLAMP
-
Item Number: 890021 SESAME BODY TYPE C1" ASME/DIN
-
Item Number: 890003 SESAME BODY TYPE C2
-
Item Number: 890040 SESAME BODY UNION DN10 DIN 11851
-
Item Number: 890006 SESAME BODY TYPE T 1/2" CLAMP
-
Item Number: 890010 SESAME BODY TYPE P 1/2" CLAMP
-
Item Number: 890013 SESAME BODY VARIVENT Ø68 1/2" CLAMP
-
Item Number: 890039 SESAME BODY MINI TRI-CLAMP 1/2" CLAMP
-
Item Number: 890022 SESAME BODY TYPE C1" ASME/DIN 1/2" CLAMP
-
Item Number: 890005 SESAME BODY TYPE C2" 1/2" CLAMP
-
Item Number: 890007 SESAME BODY TYPE T w/WL
-
Item Number: 890019 SESAME BODY TYPE P WELDING ENDS
PARTS & ACCESSORIES
-
Item Number: 890052 10 PACK MEMBRANE EPDM SESAME
-
Item Number: 600149 BUSHING FOR W9 VALVE HEAD
-
Item Number: 900018 TOMMY BAR f/DISMOUNT/MOUNT VALVE HEAD
-
Item Number: 890170 LEVER HANDLE SESAME Q
-
Item Number: 890370 Q LEVER HANDLE FOR SESAME SELF-CLOSING
