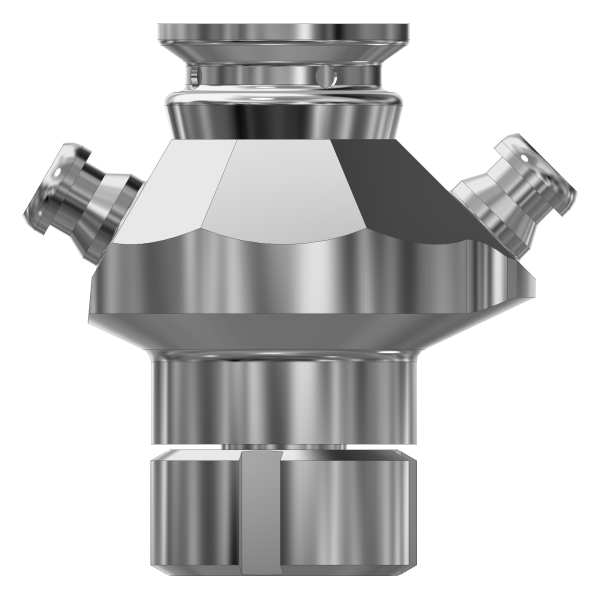

SESAME BODY UNION DN10 DIN 11851

Item number
890040
Details
Details
More Information
Viscosity 1 - 1000 cP
Particle diameter < 3 mm
In/Outlet Hose Piece
Connection Union DIN 11851

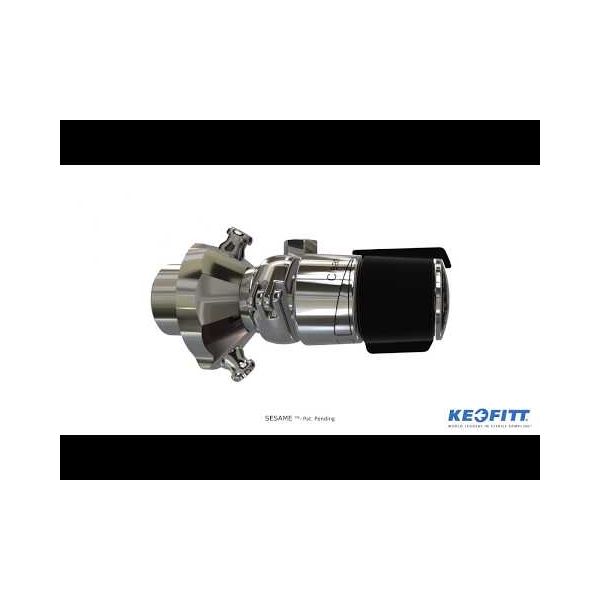

The KEOFITT SESAME Sampling Valve is KEOFITT’s dual-seated sampling valve.

Truly unique in the market, it offers optimal CIP and SIP conditions while also incorporating steam supply control and completely eliminating the steam inlet dead-space in other designs. The unique feature of this valve is in its membran e design which incorporates two separate seats for sampling and sterilizing/sanitizing, respectively. The second seat is located in the area sealing off the valve head. This design allows the sealing area to be sterilized along with the valve chamber prior to each sampling procedure. Furthermore, no separate inlet is required, thus eliminating any dead space while sampling.

The KEOFITT SESAME valve is designed for sampling of low or medium viscosity products in the range of 0-1,000 cP with particles less than 3 mm in diameter. Sampling of more viscous liquids is possible, only will it take longer (depending on process pressure).

Make request for this product
Send request
Request this product
We are happy you are interested in our products. Please fill out this form and submit - we will get back to you as soon as possible.
Send request

SESAME VALVE HEADS

  1. SESAME HEAD TYPE H
    Item number: 890041 SESAME HEAD TYPE H
  2. SESAME HEAD TYPE Q
    Item number: 890043 SESAME HEAD TYPE Q
  3. SESAME HEAD TYPE N
    Item number: 890044 SESAME HEAD TYPE N
  4. SESAME HEAD TYPE H EPDM
    Item number: 890041E SESAME HEAD TYPE H EPDM
  5. SESAME HEAD TYPE Q EPDM
    Item number: 890043E SESAME HEAD TYPE Q EPDM
  6. SESAME HEAD TYPE N EPDM
    Item number: 890044E SESAME HEAD TYPE N EPDM
  7. SESAME HEAD TYPE H
    Item number: 895541 SESAME HEAD TYPE H
  8. SESAME HEAD TYPE Q
    Item number: 895543 SESAME HEAD TYPE Q
  9. SESAME HEAD TYPE N
    Item number: 895544 SESAME HEAD TYPE N

PARTS & ACCESSORIES

  1. PTFE TUBING w/QUICK COUPLING 0.5 m
    Item number: 550002 PTFE TUBING w/QUICK COUPLING 0.5 m
  2. PTFE TUBING w/QUICK COUPLING 1 m
    Item number: 550003 PTFE TUBING w/QUICK COUPLING 1 m
  3. KÄRCHER/KEOFITT ADAPTOR
    Item number: 550057 KÄRCHER/KEOFITT ADAPTOR
  4. 10 PACK RUBBER CAP W9/4KAI/BASIX
    Item number: 600062 10 PACK RUBBER CAP W9/4KAI/BASIX
  5. QUICK COUPLING W9 SPIKE BAG HOLDER
    Item number: 800017 QUICK COUPLING W9 SPIKE BAG HOLDER
  6. QUICK COUPLING/QUICK COUPLING W9
    Item number: 800053 QUICK COUPLING/QUICK COUPLING W9
  7. SAMPLING COIL W9
    Item number: 800058 SAMPLING COIL W9
  8. QUICK COUPLING W9 ST. ST. PLUG
    Item number: 800061 QUICK COUPLING W9 ST. ST. PLUG
  9. QUICK COUPLING W9 WELDING END
    Item number: 800070 QUICK COUPLING W9 WELDING END
  10. QUICK COUPLING W9 3/8" HOSE BARB
    Item number:800082 QUICK COUPLING W9 3/8" HOSE BARB
  11. QUICK COUPLING W9/TC
    Item number: 800083 QUICK COUPLING W9/TC
  12. QUICK COUPLING W9 w/ M4 HOSE PIECE
    Item number: 800086 QUICK COUPLING W9 w/ M4 HOSE PIECE
  13. QUICK COUPLING w/HOSE BARB f/PTFE 10/8
    Item number: 800091 QUICK COUPLING w/HOSE BARB f/PTFE 10/8
  14. QUICK COUPLING W9 THREAD M16x1.5
    Item number: 800171 QUICK COUPLING W9 THREAD M16x1.5
  15. QUICK COUPLING W9 FOR SYRINGE/INJECTION
    Item number: 900045 QUICK COUPLING W9 FOR SYRINGE/INJECTION

HOW IT WORKS

NEUTRAL POSITION

CLEAN

SAMPLE

Neutral position: The Sesame valve incorporates two separate seats for sampling and cleaning/sterilizing, respectively. In its neutral position, the valve is closed towards the process and the CIP/SIP supply. Operators can then open the valve for sampling OR cleaning. It is not possible to unintentionally open for CIP/SIP while sampling, as the sample seat and the steam seat cannot be opened simultaneously.

Cleaning/Sterilizing: The Sesame offers optimal CIP/SIP conditions, allowing a fast and efficient cleaning/sterilization. When opening the valve for cleaning/sterilization, only the CIP/ SIP seat opens, allowing the cleaning media to enter the valve chamber. During this process the valve will remain closed towards the process.

Sampling: When opening the valve for sampling, only the sampling seat opens, allowing the product to flow through the valve. During this process the CIP/SIP inlet is isolated. Therefore, the sample can never spray out through the CIP/SIP inlet. Furthermore, the sample can be protected from any airborne contamination by establishing a closed sampling system (e.g. by using KEOFITT sampling bags or bottles).
